If you’re the proud owner of a Honda, you know that these cars are usually reliable and trouble-free. But even the best cars can experience problems from time to time, and one issue that might pop up is the dreaded P0141 code.
But, what can cause a P0141 Honda code? How to fix it? Well, it’s a diagnostic trouble code that indicates a problem with your Honda’s oxygen sensor circuit. It could be a malfunctioning sensor, a wiring issue, or a problem with the engine itself. To fix it, you need to identify the cause to know what steps to take.
Stick around and keep reading to learn more about the causes and potential solutions for a P0141 code.
An overview of What Can Cause a P0141 Honda Code and Its Potential Solution
Here is a table illustrating causes and how they are related to this code:
|Cause||How to fix|
|Faulty oxygen sensor||Replace the sensor|
|Faulty wiring||Check and repair damaged wiring|
|Exhaust leak||Check for and repair any exhaust leaks|
|Malfunctioning fuel injectors||Clean or replace fuel injectors|
|Faulty catalytic converter||Replace the catalytic converter|
What is Error Code P0141? How do you Identify it?
Error code P0141 is a diagnostic trouble code (DTC) that indicates a problem with the oxygen sensor circuit in your vehicle. The oxygen sensor, also known as the O2 sensor, is a crucial component that measures the amount of oxygen in the exhaust gas. It sends this information to the engine control module, which uses it to adjust the air-fuel mixture.
If the O2 sensor is not functioning correctly, it can cause problems with the air-fuel mixture. This is where the P0141 code comes in. It is triggered when the engine control module detects a problem with the O2 sensor.
To identify the P0141 code, you will need to use a diagnostic tool, such as an OBD-II scanner, to read the error codes stored in the engine control module. This tool will display the code on the screen and describe the problem.
Causes of P0141 Honda Code
Here is what is throwing this error:
1. Faulty Oxygen Sensor
The faulty or malfunctioned O2 sensor can cause the engine control module to receive incorrect information about the oxygen content in the exhaust gas.
As a result, the engine control module may adjust the air-fuel mixture incorrectly, resulting in reduced fuel efficiency, poor engine performance, and increased emissions. These issues can trigger a P0141 code.
Fixes- Repair or replace the sensor
2. Faulty Wiring
The O2 sensor is connected to the engine control module by a wiring harness, which carries the electrical signals from the sensor to the module. If the wiring is damaged or has a short circuit, it can disrupt the flow of electrical signals between the O2 sensor and the engine control module.
This can cause the P0141 code.
Fixes- Find the fault and fix
3. Engine Problem
An issue with the engine itself can also cause a P0141 code. For example, a problem with the fuel system or combustion process can cause the O2 sensor to send incorrect information to the engine control module.
Fixes- Fix your engine combustion system
4. Exhaust Leak
An exhaust leak allows outside air to enter the exhaust system. This can cause the O2 sensor to measure a higher level of oxygen than there actually is in the exhaust gas, resulting in incorrect information being sent to the engine control module.
Hence error code P0141 can be encountered.
Fixes- Patch the leaks
5. Malfunctioning Fuel Injectors
The fuel injectors are responsible for delivering fuel to the engine, and if they are not functioning correctly, it can cause an incorrect air-fuel mixture. This can result in the engine not receiving the proper fuel and oxygen to power the vehicle efficiently, resulting in an error code.
Fixes- Repair or replace your fuel injectors
6. Faulty Catalytic Converter
The catalytic converter is a component that is designed to reduce emissions by converting harmful gasses into less harmful ones. Over time, the catalytic converter can stop functioning correctly. This can be caused by various factors, such as clogging, overheating, or damage to the catalytic converter.
Once it isn’t working correctly, it won’t absorb harmful gasses and emissions. The O2 sensor will get abnormal readings, giving the wrong data to the engine control module, and leading to the error.
Fixes- Replace the catalytic converter
Step-by-Step Guide on How to Troubleshoot P0141 Honda Code
Use the following steps to troubleshoot the code:
1. Ensure you Have the Right Code
Retrieve the diagnostic trouble code (DTC) using a diagnostic tool, such as an OBD-II scanner. Connect the diagnostic tool to the vehicle’s diagnostic port. It is usually located under the dashboard on the driver’s side.
2. Check the Wiring and Connectors for Any Damage or Loose Connections
The O2 sensor is connected to the engine control module by a wiring harness, which carries the electrical signals from the sensor to the module. Use a wiring diagram and a multimeter to test the continuity of the circuit.

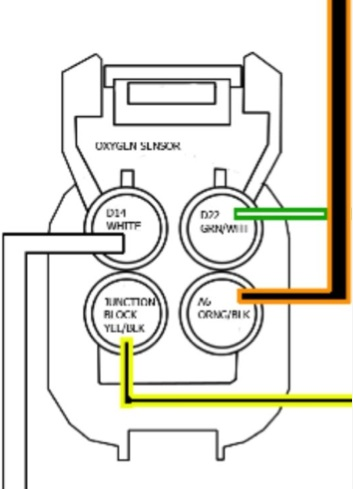

[Honda Forum] A photo illustrating the wiring diagram of an oxygen sensor.
3. Test the O2 Sensor Using a Diagnostic Tool
Test for circuit continuity. Also, test the resistance using a multimeter. It should be between 10 ohms to 40 ohms.
4. Inspect the Exhaust System for Any Leaks or Damage
Look for any visible damage or cracks in the exhaust pipes, muffler, or catalytic converter. You can also use a smoke machine or a soapy water solution to help locate any hidden leaks.
5. Check the Fuel Injectors for Proper Operation
If the exhaust system is in good condition, the next step is to check the fuel injectors for proper operation. Use a diagnostic tool to perform a fuel injector test or visually inspect the injectors for any visible damage or blockages.
6. Inspect the Catalytic Converter for Any Issues
Start the engine. Let it idle for several minutes to allow the catalytic converter to heat up. Increase the engine speed to 2500 RPM. Hold it there for several minutes to further heat the converter.
Use a pyrometer to measure your exhaust pipe temperature. Place it 50 mm before, and note the readings. Place it 50mm after and record the readings. The outlet should be 40°C hotter than the inlet.
7. Inspect Engine Ground
The engine ground is a grounding point that provides a reference voltage for the engine control module and other electronic components. If the engine ground is not functioning correctly, it can cause a problem with the O2 sensor circuit and trigger a P0141 code. Test for circuit continuity using a multimeter.
Symptoms of Honda Code P0141
Here are the common symptoms of this error code in most Honda models:
1. Reduced Fuel Efficiency
If the O2 sensor sends wrong information, it can cause the engine control module to adjust the air-fuel mixture incorrectly. This will result in the engine burning more fuel than necessary to power the vehicle.
2. Poor Engine Performance
When the engine control module adjusts the air-fuel mixture incorrectly due to a malfunctioning O2 sensor, it results in poor engine performance. This can manifest as rough idling or stalling. This can also cause a lack of acceleration or difficulty climbing hills.
If you have an incorrect air-fuel mixture, it will lead to the engine not receiving the proper amount of fuel and oxygen. There will not be enough to power the vehicle efficiently, resulting in performance issues.
3. Increased Emissions
An incorrect air-fuel mixture can lead to the engine burning more fuel than necessary. This will result in increased emissions being produced.
4. Check Engine Light Illuminated
When the O2 sensor is not functioning correctly, it triggers the P0141 code. When this happens, the check engine light will be illuminated on the dashboard as a warning.
Here are answers to common questions related to the topic:
Is P0141 a Critical Error Code?
Error code P0141 is considered a moderate severity code, as it can cause problems with your vehicle’s performance and fuel efficiency. Still, it will not usually prevent the car from running or cause immediate safety issues.
However, addressing the matter as soon as possible is essential, as ignoring it can lead to more severe problems.
Can you have a False P0141 Honda Code?
Yes, it is possible to have such a P0141 code on a Honda vehicle. A false code is a code that is triggered incorrectly and can occur for various reasons. For example, a faulty diagnostic tool, damaged wiring, or a malfunctioning engine control module can all cause a false P0141 code.
The above information has settled the question, of what can cause a P0141 Honda code and how to fix it. To prevent the code from appearing in the future, it is recommended to perform regular maintenance on your vehicle. This includes replacing the O2 sensor and catalytic converter as needed
You should also follow the manufacturer’s service guidelines for your specific vehicle model. This can help ensure that all components are functioning correctly and reduce the risk of issues like a P0141 code.
